Water Heaters
FlowPlumb™ Systems WATER HEATING SYSTEMS
FlowPlumb Systems is a European brand manufactured in Italy, known for its strict adherence to international quality standards. The systems are engineered for performance, safety, and durability—designed to meet the demands of modern living while incorporating energy-saving features and sustainable materials.
Whether you’re building a new home, upgrading an apartment, or outfitting a commercial facility, Everkast provides tailored product recommendations, local availability, and technical support, making it easier to install European-grade water heating systems in Nigerian environments.

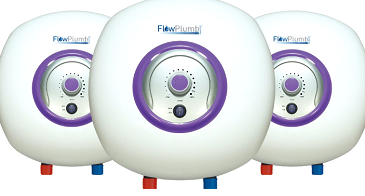

FlowPlumb™ Systems small-sized water heaters come in sizes of 10 L, 15 L, 30 L. These compact models are ideal for point-of-use applications such as kitchens, guest bathrooms, or wash basins. Their small size allows for easy under-sink or wall-mounted installation. Despite their compact nature, they deliver efficient hot water on demand with long-lasting internal tank protection.
| Model | SN10 | SN15 | SN30 |
|---|---|---|---|
| Tank capacity: | 10 Litres | 15 Litres | 30 Litres |
| Energy Class: | B | B | C |
| Heating Time to 30oC: | 17 minutes | 26 minutes | 52 minutes |
| Heating Time to 45oC: | 22 minutes | 33 minutes | 1 hour, 7 minutes |
| Pressure Relief Valve: | 8.5 Bar | 8.5 Bar | 8.5 Bar |
| Power: | 1500 W | 1500 W | 1500 W |
| Voltage: | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz |
| Empty Weight: | 6.5Kg | 7.8Kg | 11.5Kg |
| Full Weight: | 16.5Kg | 22Kg | 40Kg |
| Element: | Blue Forever | Blue Forever | Blue Forever |
| Warranty: | 5 Years | 5 Years | 5 Years |
- Model
Tank capacity:
Energy Class:
Heating Time to 30oC:
Heating Time to 45oC:
Pressure Relief Valve:
Power:
Voltage:
Empty Weight:
Full Weight:
Element:
Warranty:
10 Litres
B
17 minutes
22 minutes
8.5 Bar
1500 W
220-240 V / 50-60 Hz
6.5Kg
16.5Kg
Blue Forever
5 Years
B
26 minutes
33 minutes
8.5 Bar
1500 W
220-240 V / 50-60 Hz
7.8Kg
22Kg
Blue Forever
5 Years
C
52 minutes
1 hour, 7 minutes
8.5 Bar
1500 W
220-240 V / 50-60 Hz
11.5Kg
40Kg
Blue Forever
5 Years

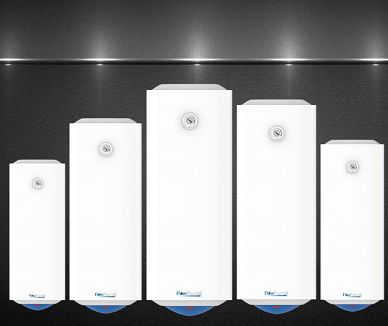

FlowPlumb™ Systems mid-sized electric water heaters are available in 50L, 80L, 100L, 120L, and 150L capacities—offering flexible options to suit a wide range of hot water needs in Nigerian homes and small commercial spaces.
Each unit is wall-mounted and designed for vertical installation, making them ideal for bathrooms, kitchens, guest houses, salons, and similar applications where space efficiency and consistent hot water supply are essential.
A standout feature of FlowPlumb™ Systems mid-sized water heaters is Blue Forever™ technology—a specialized internal enamel coating that protects the storage tank from corrosion and scale build-up, even in areas with hard or mineral-rich water.
This advanced coating helps extend the lifespan of the heater while maintaining clean, hygienic water conditions over time—making it a dependable choice for long-term use in Nigerian homes and businesses.

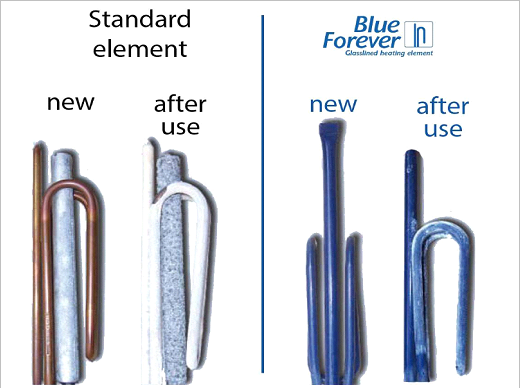

FlowPlumb™ electric water heaters are equipped with exclusive Blue Forever™ heating elements, engineered to enhance energy efficiency and extend the unit’s operational lifespan.
Combined with high-quality insulation, this technology ensures consistent performance, reduced energy consumption, and long-term durability making FlowPlumb™ Systems a smart, cost-effective solution for homes, apartments, clinics, guest houses, and hotels across Nigeria.
| Model | 50VE/RE | 80VE/RE | 100VE/RE | 120VE/RE | 150VE/RE |
|---|---|---|---|---|---|
| Tank capacity: | 50 Litres | 80 Litres | 100 Litres | 120 Litres | 150 Litres |
| Energy Class: | C | C | C | C | C |
| Heating Time to 30oC: | 1 hour, 26 minutes | 2 hours, 18 minutes | 2 hours, 53 minutes | 3 hours, 28 minutes | 4 hours, 19 minutes |
| Heating Time to 45oC: | 1 hour, 51 minutes | 2 hours, 58 minutes | 3 hours, 42 minutes | 4 hours, 27 minutes | 5 hours, 34 minutes |
| Pressure Relief Valve: | 8.0 Bar | 8.0 Bar | 8.0 Bar | 8.0 Bar | 8.0 Bar |
| Power: | 1500 W | 1500 W | 1500 W | 1500 W | 1500 W |
| Voltage: | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz |
| Weight: | 16Kg | 20.5Kg | 25.0Kg | 28.5Kg | 29.5Kg |
| Element: | Blue Forever | Blue Forever | Blue Forever | Blue Forever | Blue Forever |
| Warranty: | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
Tank capacity:
Energy Class:
Heating Time to 30oC:
Heating Time to 45oC:
Pressure Relief Valve:
Power:
Voltage:
Weight:
Element:
Warranty:
C
1 hour, 26 minutes
1 hour, 51 minutes
8.0 Bar
1500 W
220-240 V / 50-60 Hz
16Kg
Blue Forever
5 Years
C
2 hours, 18 minutes
2 hours, 58 minutes
8.0 Bar
1500 W
220-240 V / 50-60 Hz
20.5Kg
Blue Forever
5 Years
C
2 hours, 53 minutes
3 hours, 42 minutes
8.0 Bar
1500 W
220-240 V / 50-60 Hz
25.0Kg
Blue Forever
5 Years
120 Litres
C
3 hours, 28 minutes
4 hours, 27 minutes
8.0 Bar
1500 W
220-240 V / 50-60 Hz
28.5Kg
Blue Forever
5 Years
C
4 hours, 19 minutes
5 hours, 34 minutes
8.0 Bar
1500 W
220-240 V / 50-60 Hz
29.5Kg
Blue Forever
5 Years
SOLAR WATER HEATERS
FlowPlumb™ Systems Solar Water Heaters provide a sustainable and cost-effective solution for year-round hot water, specially engineered to perform reliably in Nigeria’s climate.
Each unit is delivered as a complete “one-box” system—including the solar collector, insulated storage tank, mounting frame, and all necessary connections—making installation quick and straightforward.
The high-efficiency solar collector panel is designed to maximize sunlight absorption, delivering hot water throughout the day and into the evening. Heated water is stored in a well-insulated tank that retains warmth for extended periods, helping reduce reliance on electric backup systems and significantly lowering energy costs.
Available Sizes
FlowPlumb™ Systems Solar Water Heaters are available in three sizes to accommodate a range of household and usage requirements:
⦁ 150 Litres – Ideal for small homes or light domestic use
⦁ 200 Litres – Perfect for families or homes with multiple bathrooms
⦁ 300 Litres – Designed for larger households or higher hot water demand
Each tank is insulated with water-blown polyurethane for superior heat retention and built with recyclable materials, supporting environmentally responsible living.
Nationwide Support You Can Rely On
At Everkast Limited, we ensure every FlowPlumb™ system is backed by local after-sales support and expert technical guidance, giving you confidence long after installation.
Whether you’re choosing solar for long-term energy savings or electric for instant hot water convenience, FlowPlumb™ Systems delivers reliable, European-grade performance, fully supported by Everkast’s nationwide distribution and service network across Nigeria.
Mid Capacity Models
10litres, 15 litres
We proudly supply FlowPlumb Systems water heating systems, offering a reliable solution for both residential and commercial hot water needs.
FlowPlumb Systems is a European brand manufactured in Italy, known for its strict adherence to international quality standards. The systems are engineered for performance, safety, and durability—designed to meet the demands of modern living while incorporating energy-saving features and sustainable materials.
Whether you’re building a new home, upgrading an apartment, or outfitting a commercial facility, Everkast provides tailored product recommendations, local availability, and technical support, making it easier to install European-grade water heating systems in Nigerian environments
Electric water heaters
30 litres
FlowPlumb electric hot water heaters feature exclusive Blue Forever elements to increase efficiency and increase the useful lifespan. The combination of Blue Forever and quality insulation makes these heaters durable and energy-conscious options for homes, apartments, clinics, and hotels.
Heaters
(50, 80, 100, 120 and 150 litres)
A key feature of these models is the Blue Forever technology, an internal enamel coating that protects the tank from corrosion and scale build-up. This coating supports a longer lifespan and helps maintain hygienic water conditions over time
Solar panel
Gross Area 1.88m² 2.40m²
Useful Area 1.83m² 2.33m²
Length 1960mm 1960mm
Width 960mm 1210mm
Height 80mm 80mm
Number of Connections 4 4
Dimensions of Connections 022 022
Headers Collector Cu pipe diameter 022 022
Raiser Cu pipe diameter 08 08
Raiser number 8 11
Weight 32.5Kg 42Kg
Fluid Content 1.6 litres 1.9 litres
Maximum Pressure 10 bar 10 bar
Solar Absorption 95% 95%
Thermal Emission 5% 5%
Thermal Insulation Thickness. 30mm 30mm
Transmission Factor 91.6% 91.6%
Tempered Solar Glass with thickness 3.2mm 3.2mm
Tank
Features
Water Capacity
Primary Circuit Contents
Isolation Type
Isolation Density
External Surface
Tank Protection
Protection Device Type
Protection Device Diameter
Protection Device Length
Tank Length
Tank Diameter
Net Weight
Water Max Operating Pressure
Primary Circuit Max Operating Pressure
Electrical heaters
Connection-Water
Connection-Primary Circuit
Connection-Heaters
